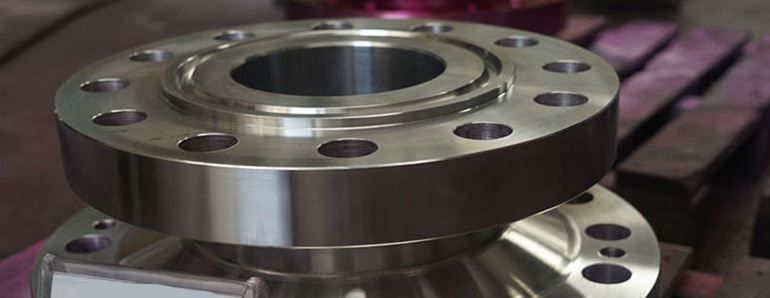

We, Darshan Metals India are one of the best Flanges Manufacturers in Mumbai, India. We provide all types of Flanges available in Various grades, materials, specifications, size, dimensions, shapes etc. according to our client's requirements. We have types of flanges that include Slip On Flanges, Threaded Flanges, Blind Flanges, Weld Neck Flanges, long Weld Neck Flanges, Lap joint Flanges, Socket Weld Flanges and more.
Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss.
Stainless Steel :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H .
Duplex Steel :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
Grades :Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Size :1/2″NB to 12″NB
Standard :ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Grades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Size : 1/2 inch – 48 inch (15mm – 1200mm)
Standard :ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features :
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Grades :Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS, Incoloy 718, Incoloy 601, Incoloy 800 H/HT, A-286 Incoloy, DS WASPALOY Alloy X
Flanges Grade :ASTM A 182 F 304/L; 316/L; 317/L; 309; 310; 321; 347; 904L.
Type :SORF, BLRF, WNRF, SOLJ
Class :50 To 3000
Flanges Range :DN15 Upto DN1800 IN 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS / TABLE 2.5, TABLE 6, TABLE 10, TABLE 16, TABLE 25, TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Grades :Monel 400, Monel k500
Range :1/2″ NB to 60″ NB
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Chemical resistance
Excellent finish
Specifications : ASTM B363,ASTM B16.9 Titanium pipe fittings
Material : Titanium gr1, gr2, gr5, etc.
Product : Elbow, Tee, Stud End, Reducer
Elbow Type : 45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow
Tee Type : Straight Tee, Reducing Outlet Tee
Grades : Nimonic, Nickel 75, Nimonic 200, Nimonic 80A, Inconel 90, Nimonic 718, Inconel 901, Nimonic X-750, Monel 263, Inconel 400, Inconel 625, LCFMonel 625, Inconel k-500, Incoloy 686, Incoloy 825, Alloy 925, Alloy C22, Incoloy C276, Inconel 330, Inconel 600, Incoloy 601, Incoloy 800 H/HT, Incoloy A-286, DS WASPALOY Alloy X Nickel 201.
Size : 1/2” NB to 4” NB
Range : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Grades: UNS 2200 (Nickel 200), UNS 2201 (Nickel 201)
Grades : Nitronic, Nitronic 60, Nilo 50, K / KovarNilomag, Nilo 77, 42 / Invar, Nilo, 36 / Invar.
Range : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Dimensional accuracy
High strength
Durability
Corrosion resistance
Excellent finish
Grades : Nickel 200 Nimonic, Monel 263, Inconel 400, Inconel 625, LCFMonel 625, Inconel k-500, Incoloy 686, Incoloy 825, Alloy 925, Alloy C22, Alloy C276, Alloy C2000, Nickel 201.
Range : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Dimensional accuracy
High strength
Durability
Corrosion resistance
Excellent finish
Grades : Nimonic, Nimonic 75, Nimonic 80A, Nimonic 718, Inconel 90, Inconel 901 X -750.
Range : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Dimensional accuracy
High strength
Durability
Corrosion resistance
Excellent finish
Grades : 7075 T6, 7075 T651, 7075 T6511, 7075 T652, 7075 T7351, 7175 T7351, 7050 T7451, 7010 T7451, 7020 T6, 7020 T651, 7020 T652, 5052, 5754, 5083, 6061, 6082, 6063.
2014 T6, 2014 T651, 2014 T6511, 2014 T652, 2024 T3, 2024 T351, 2024 T3511, 2024 T4, 2618.
Range : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Strength to Weight Ratio
Toxicity
Recycling
Corrosion resistance
Excellent finish
Grades : AISI 308, AISI 309, AISI 310, Nilo CF36, Monel 60, Nickel 61, Incoloy 65, Monel 67, NC 80/20, Inconel 82, Nimonic 90, Inconel 92, Inconel 112, Inconel 117, Incoloy 135, Nickel 141, Inconel 182, Monel 187, Nimonic 263, Monel 190, Inconel 617, Inconel 601, Inconel 625, Inco Weld 686 CPT, Inconel 718, Inco Weld, Alloy C22, Inco Weld C-276, Inco Weld HX, Titanium AWS A5.16-90 ERTi-1, Titanium AWS A5.16-90 ERTi-2, Titanium AWS A5.16-90 ERTi-5, Titanium AWS A5.16-90 ERTi-7.
Range : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Melting Point
Ductility
Electrical Conductivity
Strength
Specifications
1. Material:Titanium.
2. Grade: Titanium Grade 1, Titanium Grade 2, Titanium Grade 3, Titanium Grade 4, Titanium Grade 5, Titanium Grade 7, Titanium Grade 9, Titanium Grade 23.
3. Standards:DIN,ASTM,BS.
4. Application:Bicycles,Motors,Chemicals.
Description
Standards:DIN,ASTM,BS.
Strength :Superior Quality, Fast delivery, Competitive price as well as humanized after-sales service.
Features :Low density, rustless, good antiwear property, high strength.
Size:Set the size according to the customers’ requirements.
| Element | Composition,% | |||||
| Gr2 | Gr5 | Gr7 | Gr9 | Gr11 | Gr12 | |
| N max | 0.03; | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 |
| C max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| H max | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 |
| Fe max | 0.30 | 0.40 | 0.50 | 0.25; | 0.20 | 0.30 |
| O max | 0.25 | 0.20 | 0.25 | 0.15 | 0.18 | 0.25 |
| Al max | 5.5~6.75 | 2.5~3.5 | ||||
| V max | 3.5~4.5 | 2.0~3.0 | ||||
| Pd max | 0.12~0.25 | 0.12~0.25 | ||||
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| Grade1 | 35 | 240 | 20 | 138 | 24 |
| Grade2 | 50 | 345 | 40 | 275 | 20 |
| Grade3 | 65 | 450 | 55 | 380 | 18 |
| Grade5 | 130 | 895 | 120 | 828 | 10 |
| Grade7 | 50 | 345 | 40 | 275 | 20 |
| Grade9 | 90 | 620 | 70 | 438 | 15 |
| Grade12 | 70 | 438 | 50 | 345 | 18 |
